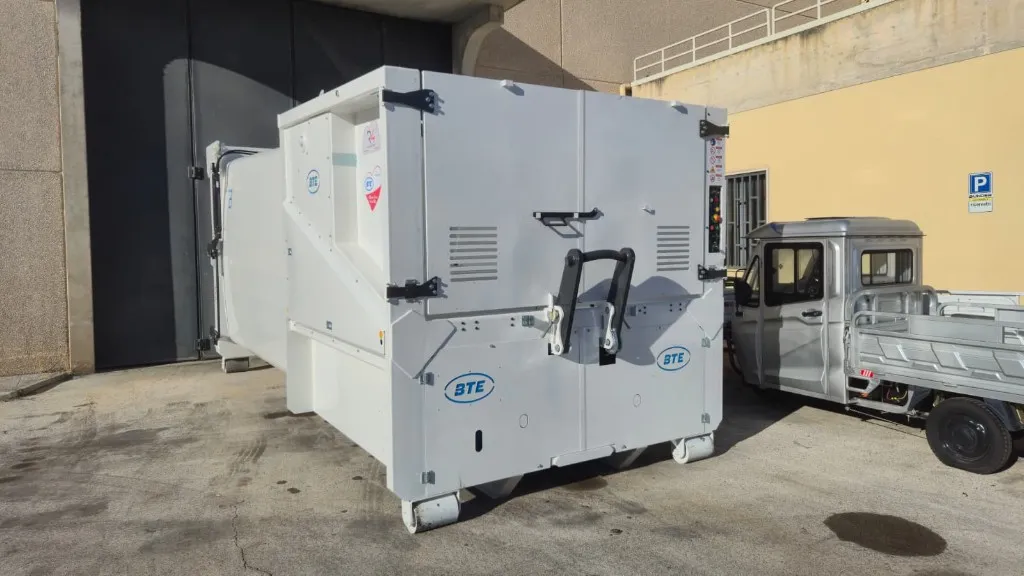

BTE hook-lift compactor 22 m³

Available for purchase: BTE hook-lift single-blade compactor, 22 m³ useful volume and 50 t nominal push force, 11 kW electric power pack with +B CONNECT telemetry. Serial 26P0509, model CBMLG22B600.

Unit available

Available for purchase with CE documentation and user/maintenance manual. For availability, transport and commissioning contact Bunder Company; quote article code BTECINA.G000019 or serial 26P0509.

Identification

Manufacturer: BTE S.p.A. – Busi Group
Type: hook-lift single-blade compactor (BLQ / CSM series)
Article code: BTECINA.G000019
Model: CBMLG22B600
Serial number: 26P0509
Use: compaction and storage of manually loaded waste

Dimensions and performance

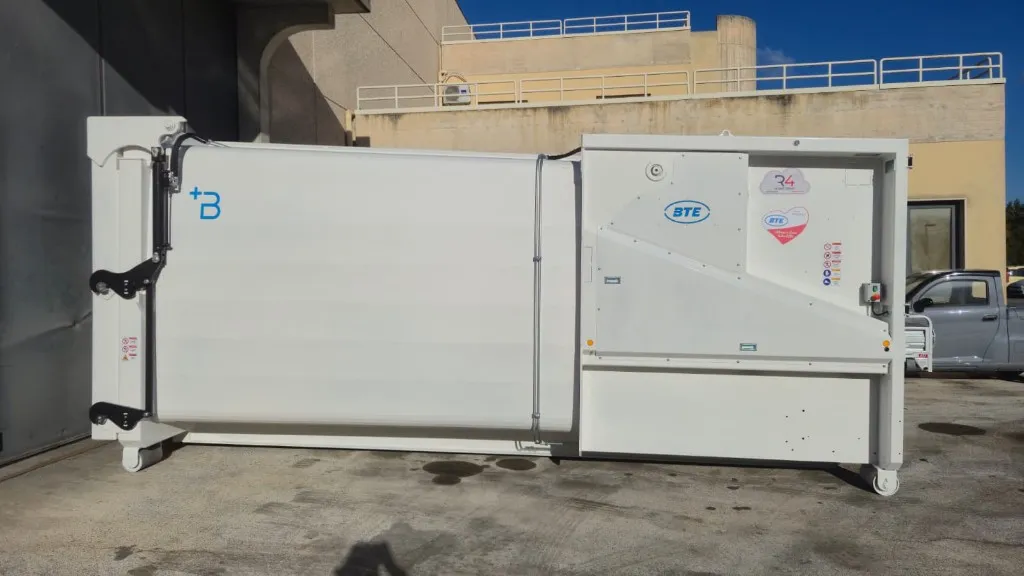

Overall length: 6,200 mm (rear hook excluded)
Useful volume: 22 m³
Loading height: 1,480 mm
Nominal push force: 50 t (500 kN)
Loading: manual
Working layout: left-hand drive / rear loading

Electrical and hydraulic group

Power pack supply: electric
Motor power: 11 kW
Hydraulic connection: direct, without distributor

Mechanical equipment

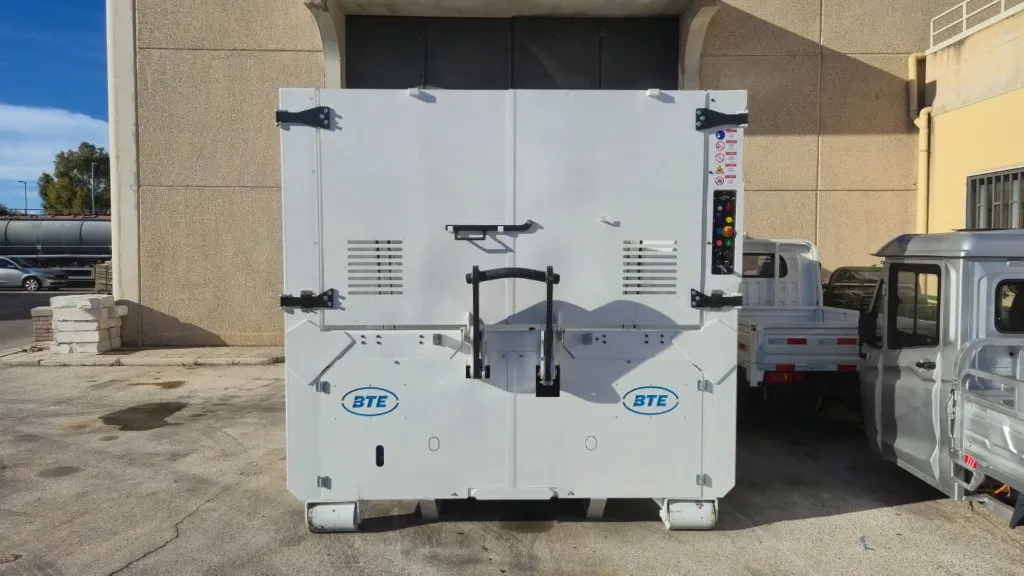

Front hopper protection with solid sheet gates and ventilation slots

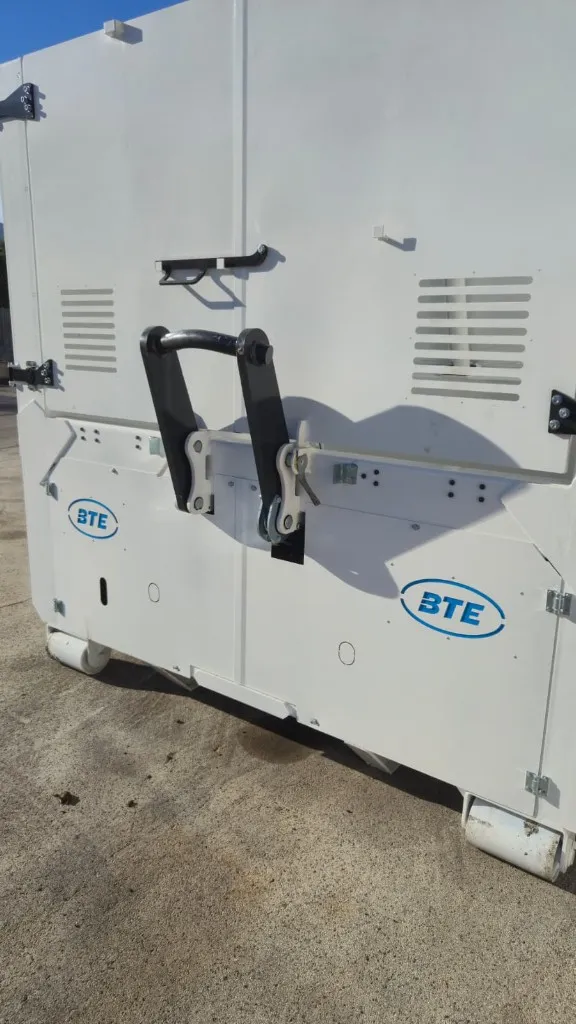

Rear tailgate with hydraulic tipping open/close
Floor and body in high-strength sheet (Hardox/HB400) shaped for leak-tightness and leachate containment

Industry 4.0 connectivity

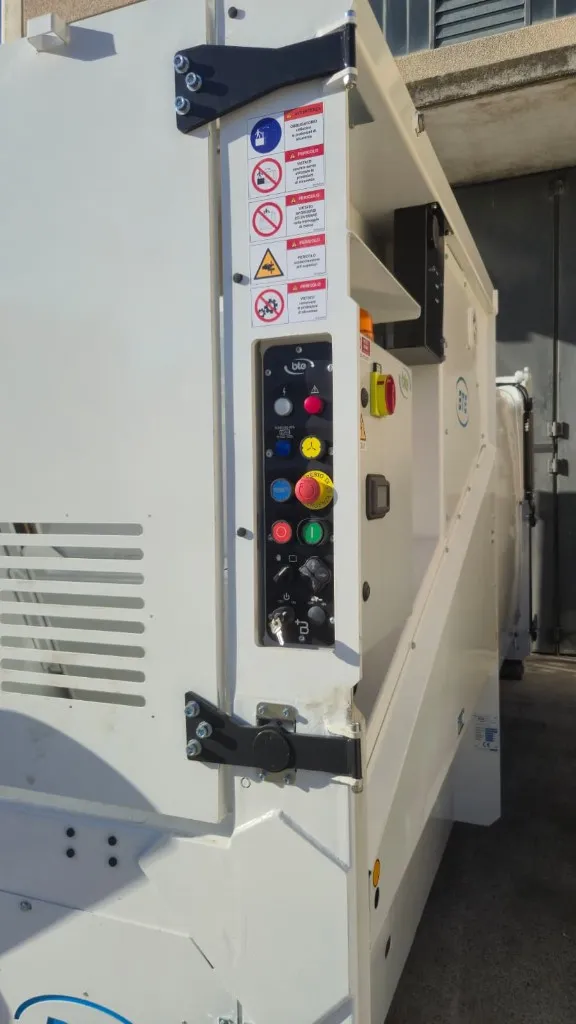

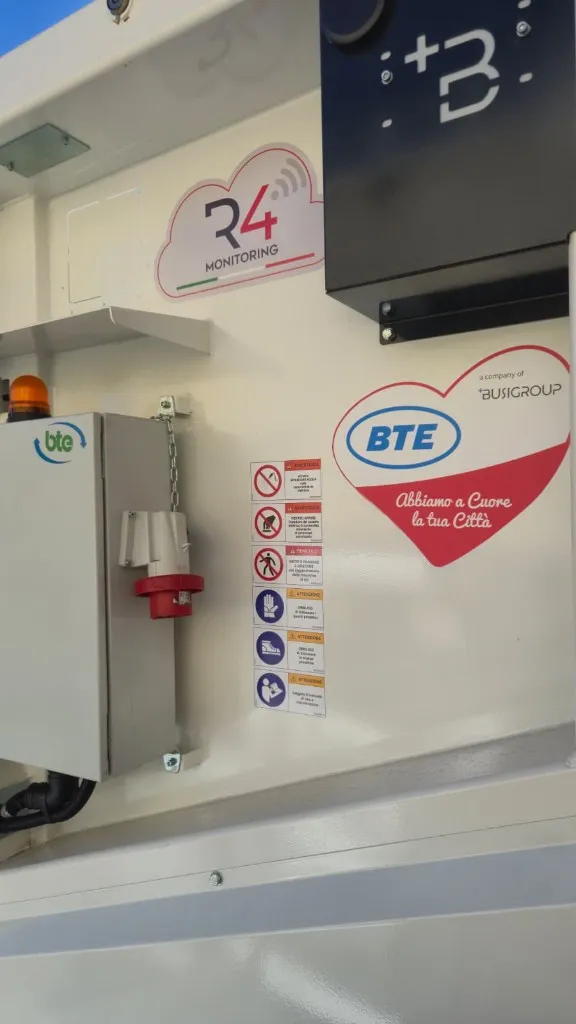

+B CONNECT telemetry module for bidirectional data: remote diagnostics, compaction cycle tracking, localisation and fleet management integration.

BTE range

For bespoke layouts and the CSM monopala line see also and Bunder press containers and skips.

Advantages

Three points that matter in service

Operational summary from the technical sheet: capacity, emptying and use context.

Useful volume
22 m³
model CBMLG22B600
- Length 6,200 mm (hook excluded)
- Loading height 1,480 mm
- Manual loading
Nominal push force
50 t
500 kN
- Single-blade for storage and compaction
- Hardox/HB400 body
- Leachate containment
Power supply
11 kW
electric power pack
- Direct hydraulics without distributor
- +B CONNECT telemetry
- CE marking

Context

Applications, partner and support

Three areas to guide technical choices and how you work with Bunder and partners.

Applications and context
BTE hook-lift single-blade compactor, 22 m³ and 50 t push force, available for purchase with +B CONNECT telemetry.
Partner and product line
Bunder works with specialist manufacturers for this line and coordinates supplies and configurations with the relevant partners.
Bunder commercial support
Bunder selects and coordinates supplies with partners, supports authorities and service providers in choosing the right setup, and advises on tenders, equipment rental and bespoke configurations.
